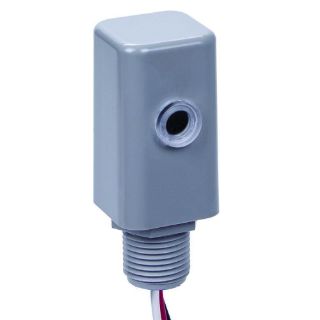

Actual Product May Vary From Image

EK4136S INM

Name: EK4136S INM
SKU: EK4136S INM
Availability: InStock

Intermatic® EK4136S Electronic Stem Mounting Photocontrol, 105 to 305 VAC, 1000 W Tungsten, 1800 VA Ballast, Stem Mount, Plastic

Manufacturer part number: EK4136S

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	0	2
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Intermatic®

Type

Electronic

Alternate Supplier #

Grainger - 52RU69

Description

The EK4136S is an electronic photo control that fits standard 1/2 in knockouts in standard outlet boxes and wall pack lighting fixtures. it is made with a uv stabilized, high impact plastic housing that stands up to outdoor environment and features a silicon light sensor with a zero-crossing circuit to provide a long service life.

Intermatic® Stem Mounting Photocontrol, Electronic, HID/LED Fixture, 105 to 305 VAC, 6 A, 50/60 Hz, 1000 W Tungsten, 1800 VA Ballast, 2 to 5 s, 18 AWG Wire, Solid State/Silicon IR Filter Sensor, 1.5 FC ON/2.25 FC OFF, NEMA 4/10, Environmental Conditions: -40 to 158 deg F Operating Temperature, 1000 Operating Cycles, Stem Mount, Plastic, Gray, 2.25 in H x 1.3 in W x 1.24 in D

Application

Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Landscape Lighting and Dusk to Dawn Lighting Control Applications

Standards

ANSI C136.24 | cULus Listed | Title CA 20 | cCSAus Certified | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

<0.5 W power consumption at 277 VAC poW power consumptioner consumption
Electronic control source
Long life, electronic photocell, zero cross technology
LED fixtures totaling 1650 W at 277 VAC, fail mode on, side lens, UV stabilized
Employs electronic components exclusively selected to meet extended life targets
Conformal coated PCB assemblies for long term
255 J MOV surge protection component
Non-drifting silicon light sensor IR filtered for human eye response
Zero cross technology helps device withstand severe inrush current and extend relay life
Long life, electronic photocell, zero cross technology, LED fixtures totaling 1650 W at 277 VAC, fail mode on, side lens, UV stabilized
6 in lead wire

Specifications

Amperage Rating:	6 A
Ballast Load:	1800 VA
Color:	Gray
Country of Origin:	MX
Dimensions:	2.25 in H x 1.3 in W x 1.24 in D
Enclosure Type:	NEMA 4/10
Environmental Conditions:	-40 to 158 deg F Operating Temperature
Fixture Type:	HID/LED
Frequency Rating:	50/60 Hz
Material:	Plastic
Mounting Type:	Stem
Operating Cycles:	1000
Sensitivity:	1.5 FC ON/2.25 FC OFF
Sensor Type:	Solid State/Silicon IR Filter
Timing Range:	2 to 5 s
Tungsten Rating:	1000 W
Voltage Rating:	105 to 305 VAC
Wire Size:	18 AWG
