ELBY50 APN

Name: ELBY50 APN
Brand: Appleton
SKU: ELBY50 APN
Price: 32.16 USD
Availability: OutOfStock

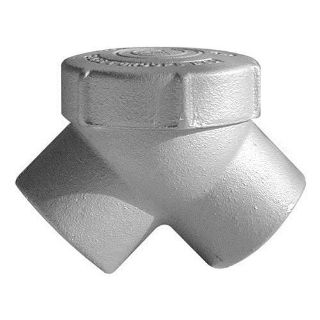

Appleton® UNILETS® ELBY-50 Dust-Ignitionproof Explosionproof Capped Raintight Conduit Elbow, 1/2 in Trade, 90 deg, Malleable Iron, Triple Coated

Manufacturer: Appleton

Manufacturer part number: ELBY-50

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$32.16

Qty:

Product Details

Brand Name

Appleton®

Type

Dust-Ignitionproof Explosionproof Capped Raintight

Alternate Supplier #

Grainger - 6RUL3

Description

Appleton® Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2 in through 4 in, with designs that facilitate pulling of even heavy, difficult to bend conductors.

Appleton® UNILETS® Conduit Elbow, Dust-Ignitionproof Explosionproof Capped Raintight, Series: ELBY, 1/2 in, 90 deg, For Use With: IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated, 2-3/4 in L

Standards

ARRA Compliant | UL 886, UL File No. E10444 | CSA C22.2 No. 30 | CSA 065181, Class 1, Group B, Class I, Groups C, D, Class II, Groups E, F, G and Class III

Features

Serves as pulling fitting
Makes 90 deg bend in conduit runs
Built in rollers to facilitate cable pulling
Permits easy access to pulling conductors
Screw on cover for ease of installation and removal
Cover opens on an angle permitting conductors to be pulled straight through either hub
Can make 90 deg turns in conduit where a compact turn is desired
Female tapered threaded hubs (NPT) for rigid conduit and IMC
Chromate/epoxy powder coated/zinc electroplated finish

Specifications

Angle:	90 deg
Country of Origin:	MX
Dimensions:	2-3/4 in L
Finish:	Triple Coated
Material:	Malleable Iron
Series:	ELBY
Suitable For Use With:	IMC/Threaded Rigid Metallic Conduit
Trade Size:	1/2 in
