ELS11812 APN

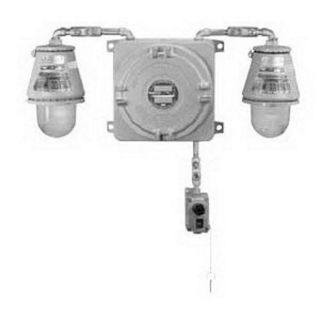

Appleton® ELS11812 Dust Ignitionproof Explosionproof Emergency Lighting System, 18 W Incandescent Lamp, 120/277 VAC, Aluminum
Manufacturer: Appleton
Manufacturer part number: ELS11812
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Appleton®

Type

Dust Ignitionproof Explosionproof

Description

Appleton® Emergency Lighting System, Dust Ignitionproof Explosionproof, Series: ELS, 120/277 VAC, Incandescent Lamp, 18 W Lamp, Double Contact Bayonet Base, Sealed Pure-Lead Battery Power Source, Surface Mounting, 13.75 in L x 12.38 in W Dimensions, Aluminum

Application

For hazardous areas which include oil refineries, petrochemical facilities, pulp, paper mills, chemical storage areas, wastewater treatment facilities and grain elevators

Standards

UL 924 | UL 844 | UL 1598 | UL 175025

Features

  • The electronics consist of a solid state charger, transfer circuit and low voltage battery disconnect circuit
  • The unit test switch and AC "On" indicator light are housed in a separate module that may be attached directly to the unit housing or mounted remotely for ease of testing
  • All ELS series units are rated for operation in NEC class I, division 1 and 2, groups C and D and class II, division 1 and 2, groups E, F and G environments
  • Housing provisions allow for the attachment of two optional explosionproof lighting fixtures
  • Unit capacity is sufficient for the connection of up to (4) 6 or 12 VAC, 18 W fixtures
  • Units provide 90 min of emergency operation
  • The solid-state charger maintains battery at full charge
  • Upon failure of utility voltage, the DC emergency lighting load is connected to the battery

Specifications

Base Type:Double Contact Bayonet
Country of Origin:MX
Dimensions:13.75 in L x 12.38 in W
Lamp Type:Incandescent
Lamp Wattage:18 W
Material:Aluminum
Mounting Type:Surface
Power Source:Sealed Pure-Lead Battery
Series:ELS
Voltage Rating:120/277 VAC
