ELS12812T1 APN

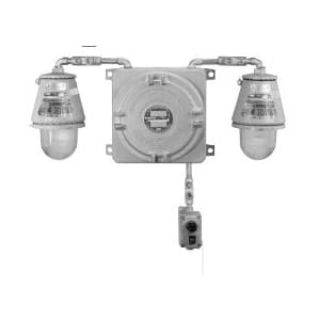

Appleton® ELS12812T1 Emergency Lighting Fixture, 28 W Incandescent Lamp, 120/277 VAC, 1 Heads, Aluminum
Manufacturer: Appleton
Manufacturer part number: ELS12812T1
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Appleton®

Description

Appleton® Emergency Lighting Fixture, 120/277 VAC, Incandescent Lamp, 28 W Lamp, Double Contact Bayonet Base, 1 Heads, Sealed Pure-Lead Battery Power Source, Surface Mounting, 14.12 in L Dimensions, Aluminum

Application

For hazardous locations

Standards

UL 924/844/1598/175025 | Class I, Division 1 and 2, Groups C, D Class II, Division 1 and 2, Groups E, F, G Class III NEC

Features

  • Unit capacity is sufficient for the connection of up to four 6- or 12- volt, 18-watt fixtures, housing provisions allow for the attachment of two optional explosionproof lighting fixtures
  • Standard illumination is provided during power failure only using fixtures specially designed for emergency lighting in hazardous environments, supplied with double contact bayonet base 18- or 28-watt incandescent lamps
  • 0 to 40 deg C operating temperature
  • Copper free aluminum (battery enclosure, fixtures, guards and pendant mount), epoxy powder coated finish
  • 12 VDC lamp voltage
  • Constructional feature explosionproof, dust-ignitionproof
  • 1/2 in NPT provided for AC input
  • Units provide 90 minutes of emergency operation
  • Time delay relay for 120 VAC input

Includes

Lamp

Specifications

Base Type:Double Contact Bayonet
Country of Origin:MX
Dimensions:14.12 in L
Lamp Type:Incandescent
Lamp Wattage:28 W
Material:Aluminum
Mounting Type:Surface
Number of Heads:1
Power Source:Sealed Pure-Lead Battery
Voltage Rating:120/277 VAC
