EM2334T BLD

Picture of EM2334T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM2334T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,480.57 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Phase: 3 PH; Voltage Rating: 230/460 VAC; Full Load Current: 48/24 AMP; Service Factor: 1.15; Enclosure: TEFC; Frame: 256T; Horsepower: 20 HP; Speed Rating: 1765 RPM; Frequency Ra

Application

General Purpose

Features

20HP,1765RPM,3PH,60HZ,256T,0952M,TEFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:256
Frequency Rating:60 Hz
Full Load Current:24.0 A; 48.0 A
Horsepower:20.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:93.00%
Phase:Three Phase
Power Factor:84
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,765 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V

Resources

Tech DrawingSpec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
256T
Frequency Rating
60 Hz
Horsepower
20 HP
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
230/460

Customers who bought this item also bought

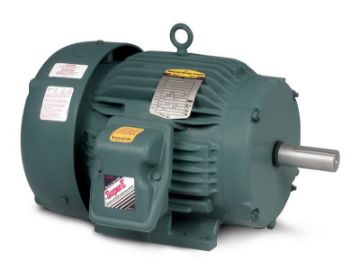

Picture of ECP4106T-4 BLD
