EM3218T-8 BLD

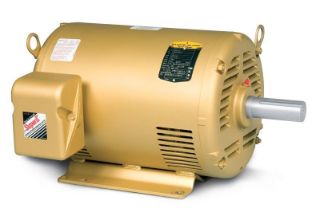

Picture of EM3218T-8 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM3218T-8
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,318.31 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 200 VAC; Horsepower: 5 HP; Speed Rating: 1750 RPM; Frequency Rating: 60 HZ; Full Load Current: 15.3 AMP; Torque Rating: 15 LB-FT Full Load, 45.6 LB-FT Break Down, 26 LB-FT Pull-Up, 30.7 LB-FT Locked-

Application

General Purpose

Features

5HP,1750RPM,3PH,60HZ,184T,3640M,OPSB,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:OPSB
Frame:184
Frequency Rating:60 Hz
Full Load Current:15.3 A
Horsepower:5.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:89.50%
Phase:Three Phase
Power Factor:8
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,750 rpm
Sub Brand:Super-E
Voltage Rating:200 V

Resources

Tech DrawingSpec SheetWarranty
