EM3218T BLD

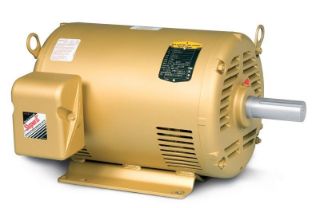

Picture of EM3218T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM3218T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,170.99 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 208-230/460 VAC; Horsepower: 5 HP; Speed Rating: 1750 RPM; Frequency Rating: 60 HZ; Full Load Current: 14-13.2/6.6 AMP; Torque Rating: 15 LB-FT Full Load, 44.8 LB-FT Break Down, 25.5 LB-FT Pull-Up, 3

Application

General Purpose

Features

5HP,1760RPM,3PH,60HZ,184T,3640M,OPSB,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:OPSB
Frame:184
Frequency Rating:60 Hz
Full Load Current:13.2 A; 14.0 A; 6.6 A
Horsepower:5.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:89.50%
Phase:Three Phase
Power Factor:8
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,750 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Tech DrawingSpec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
OPSB
Frame
184T
Frequency Rating
60 Hz
Horsepower
5 HP
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
208-230/460
