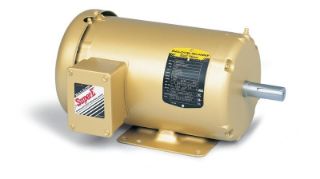

Picture of EM3546 BLD
Actual Product May Vary From Image

EM3546 BLD

1HP,1760RPM,3PH,60HZ,56,3519M,TEFC,F1,N
Manufacturer: Baldor Reliance
Manufacturer part number: EM3546
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 1
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$828.54

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

1HP,1760RPM,3PH,60HZ,56,3519M,TEFC,F1,N

Application

General Purpose

Features

1HP,1760RPM,3PH,60HZ,56,3519M,TEFC,F1,N

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:1.5 A; 3.0 A; 3.1 A
Horsepower:1.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:85.50%
Phase:Three Phase
Power Factor:71
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,760 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty
