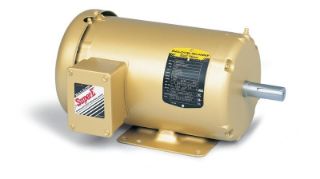

Actual Product May Vary From Image

EM3546T BLD

Name: EM3546T BLD
Brand: Baldor Reliance
SKU: EM3546T BLD
Price: 828.54 USD
Availability: InStock

1HP,1760RPM,3PH,60HZ,143T,3519M,TEFC,F1

Manufacturer: Baldor Reliance

Manufacturer part number: EM3546T

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
1	0
Loading...

$828.54

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Horsepower: 1 HP; Phase: 3 PH; Voltage Rating: 208-230/460 VAC; Full Load Current: 3.1-3/1.5 AMP; Power Factor: 71; Service Factor: 1.15; Enclosure: TEFC; Frame: 143T; Insulation

Application

General Purpose

Features

1HP,1760RPM,3PH,60HZ,143T,3519M,TEFC,F1

Specifications

Base:	Rigid
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	143
Frequency Rating:	60 Hz
Full Load Current:	1.5 A; 3.0 A; 3.1 A
Horsepower:	1.000 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	B
NEMA Nominal Efficincy:	85.50%
Phase:	Three Phase
Power Factor:	71
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	1,760 rpm
Sub Brand:	Super-E
Voltage Rating:	460 V; 230 V; 208 V

Resources

Tech Drawing Spec Sheet Warranty
