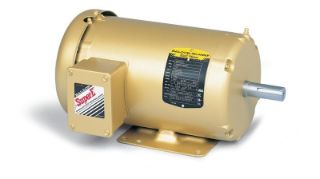

Actual Product May Vary From Image

EM3554T BLD

Name: EM3554T BLD
Brand: Baldor Reliance
SKU: EM3554T BLD
Price: 920.69 USD
Availability: InStock

1.5HP,1760RPM,3PH,60HZ,145T,3526M,TEFC,F

Manufacturer: Baldor Reliance

Manufacturer part number: EM3554T

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$920.69

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Horsepower: 1.5 HP; Phase: 3 PH; Voltage Rating: 230/460 VAC; Full Load Current: 4.5-4.4/2.2 AMP; Power Factor: 73; Service Factor: 1.15; Enclosure: TEFC; Frame: 145T; Insulation

Application

General Purpose

Features

1.5HP,1760RPM,3PH,60HZ,145T,3526M,TEFC,F

Specifications

Base:	Rigid
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	145
Frequency Rating:	60 Hz
Full Load Current:	2.2 A; 4.4 A; 4.5 A
Horsepower:	1.500 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	B
NEMA Nominal Efficincy:	86.50%
Phase:	Three Phase
Power Factor:	73
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	1,760 rpm
Sub Brand:	Super-E
Voltage Rating:	460 V; 230 V; 208 V

Resources

Tech Drawing Spec Sheet Warranty
