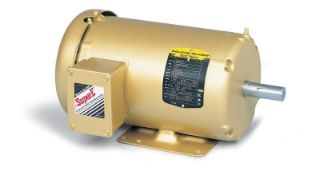

Picture of EM3607T BLD
Actual Product May Vary From Image

EM3607T BLD

1.5HP,1165RPM,3PH,60HZ,182T,3632M,TEFC,F
Manufacturer: Baldor Reliance
Manufacturer part number: EM3607T
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,250.88

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

1.5HP,1165RPM,3PH,60HZ,182T,3632M,TEFC,F

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:182
Frequency Rating:60 Hz
Full Load Current:4.8 A; 2.4 A; 5.0 A
Horsepower:1.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:87.50%
Phase:Three Phase
Power Factor:67
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,165 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V
