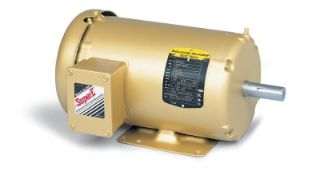

Actual Product May Vary From Image

EM3710T BLD

Name: EM3710T BLD
Brand: Baldor Reliance
SKU: EM3710T BLD
Price: 1,488.15 USD
Availability: InStock

7.5HP,1770RPM,3PH,60HZ,213T,3736M,TEFC

Manufacturer: Baldor Reliance

Manufacturer part number: EM3710T

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,488.15

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 230/460 VAC; Horsepower: 7.5 HP; Speed Rating: 1770 RPM; Frequency Rating: 60 HZ; Full Load Current: 18.8/9.4 AMP; Torque Rating: 22.4 LB-FT Full Load, 69.2 LB-FT Break Down, 36.1 LB-FT Pull-Up, 41.1

Application

General Purpose

Features

7.5HP,1770RPM,3PH,60HZ,213T,3736M,TEFC

Specifications

Base:	Rigid
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	213
Frequency Rating:	60 Hz
Full Load Current:	18.8 A; 9.4 A
Horsepower:	7.500 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	A
NEMA Nominal Efficincy:	91.70%
Phase:	Three Phase
Power Factor:	81
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	1,770 rpm
Sub Brand:	Super-E
Voltage Rating:	460 V; 230 V

Resources

Tech Drawing Spec Sheet Warranty
