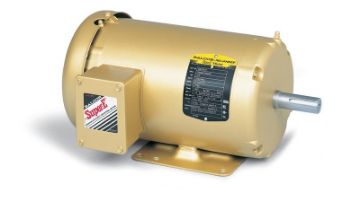

Actual Product May Vary From Image

EM3770T BLD

Name: EM3770T BLD
Brand: Baldor Reliance
SKU: EM3770T BLD
Price: 1,902.04 USD
Availability: OutOfStock

7.5HP,1770RPM,3PH,60HZ,213,T,0735M,TEFC

Manufacturer: Baldor Reliance

Manufacturer part number: EM3770T

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,902.04

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Horsepower: 7.5 HP; Phase: 3 PH; Voltage Rating: 230/460 VAC; Full Load Current: 19/9.5 AMP; Power Factor: 81; Service Factor: 1.15; Enclosure: TEFC; Frame: 213T; Insulation Class

Application

General Purpose

Features

7.5HP,1770RPM,3PH,60HZ,213,T,0735M,TEFC

Specifications

Base:	Rigid
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	213
Frequency Rating:	60 Hz
Full Load Current:	19.0 A; 9.5 A
Horsepower:	7.500 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	A
NEMA Nominal Efficincy:	91.70%
Phase:	Three Phase
Power Factor:	81
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	1,770 rpm
Sub Brand:	Super-E
Voltage Rating:	460 V; 230 V

Resources

Tech Drawing Spec Sheet Warranty
