EM3774T BLD

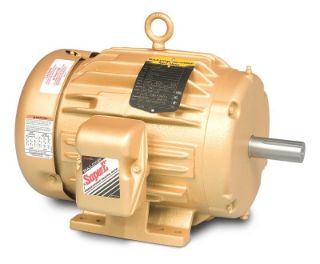

Picture of EM3774T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM3774T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,203.41 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Horsepower: 10 HP; Phase: 3 PH; Voltage Rating: 230/460 VAC; Full Load Current: 24.4/12.2 AMP; Power Factor: 83; Service Factor: 1.15; Enclosure: TEFC; Frame: 215T; Insulation Cla

Application

General Purpose

Features

10HP,1760RPM,3PH,60HZ,215T,0748M,TEFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:215
Frequency Rating:60 Hz
Full Load Current:12.2 A; 24.4 A
Horsepower:10.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:91.70%
Phase:Three Phase
Power Factor:83
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,760 rpm
Sub Brand:Super-E
Voltage Rating:230 V; 460 V

Resources

Tech DrawingSpec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
215T
Frequency Rating
60 Hz
Horsepower
10 HP
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
230/460
