EM7032T-I BLD

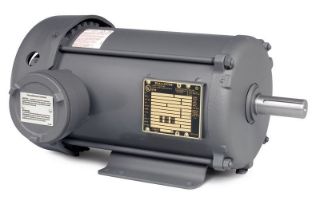

Picture of EM7032T-I BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM7032T-I
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Hazardous Location Motor

Features

1//.75HP,1155//960RPM,3PH,60//50HZ,145T

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:XPFC
Frame:145
Frequency Rating:60 Hz; 50 Hz
Full Load Current:1.7 A; 1.8 A; 3.4 A; 3.6 A
Horsepower:1.000 hp; 0.750 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:82.50%
Phase:Three Phase
Power Factor:64
Rotation:Reversible
Service Factor:1.15
Speed Rating:960 rpm; 1,155 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 380 V; 230 V; 190 V

Resources

Spec SheetWarranty

Products Specifications

Application
Explosion Proof
Brand Name
Baldor-Reliance
Enclosure
XPFC
Frame
145T
Frequency Rating
50/60 Hz
Horsepower
3/4 HP
Speed Rating
1200 RPM
Type
Explosion Proof Motor
Voltage Rating
230/460//190/380
