EM7056T-5 BLD

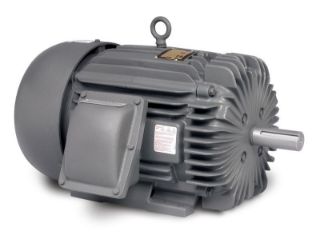

Picture of EM7056T-5 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM7056T-5
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Hazardous Location Motor

Features

20HP,1765RPM,3PH,60HZ,256T,0952M,XPFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:XPFC
Frame:256
Frequency Rating:60 Hz
Full Load Current:19.2 A
Horsepower:20.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:93.00%
Phase:Three Phase
Power Factor:84
Rotation:Reversible
Service Factor:1
Speed Rating:1,765 rpm
Sub Brand:Super-E
Voltage Rating:575 V

Resources

Spec SheetWarranty

Products Specifications

Application
Explosion Proof
Brand Name
Baldor-Reliance
Enclosure
XPFC
Frame
256T
Frequency Rating
60 Hz
Horsepower
20 HP
Speed Rating
1800 RPM
Type
Explosion Proof Motor
Voltage Rating
575
