EM7082T-I BLD

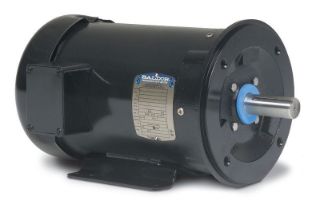

Picture of EM7082T-I BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM7082T-I
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Hazardous Location Motor

Features

25//20HP,1180//985RPM,3PH,60//50HZ,324T

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:XPFC
Frame:324
Frequency Rating:60 Hz; 50 Hz
Full Load Current:31.0 A; 32.0 A; 62.0 A; 63.0 A
Horsepower:25.000 hp; 20.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:A
NEMA Nominal Efficincy:93.00%
Phase:Three Phase
Power Factor:79
Rotation:Reversible
Service Factor:1.15
Speed Rating:985 rpm; 1,180 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 380 V; 230 V; 190 V

Resources

Spec SheetWarranty

Products Specifications

Application
Explosion Proof
Brand Name
Baldor-Reliance
Enclosure
XPFC
Frame
324T
Frequency Rating
50/60 Hz
Horsepower
25 HP
Speed Rating
1200 RPM
Type
Explosion Proof Motor
Voltage Rating
230/460//190/380
