EM7090T-I-5 BLD

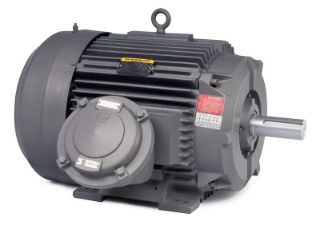

Picture of EM7090T-I-5 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM7090T-I-5
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Hazardous Location Motor

Features

100HP,1780RPM,3PH,60HZ,405T,XPFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:X45
Frequency Rating:60 Hz
Full Load Current:89.6 A
Horsepower:100.000 hp
Insulation Class:F
NEMA Design:B
NEMA Nominal Efficincy:95.40%
Phase:Three Phase
Power Factor:88
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,780 rpm
Sub Brand:Super-E
Voltage Rating:575 V

Resources

Spec SheetWarranty

Products Specifications

Application
Explosion Proof
Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
X405T
Frequency Rating
60 Hz
Horsepower
100 HP
Speed Rating
1800 RPM
Type
Explosion Proof Motor
Voltage Rating
575
