EM7147T-C BLD

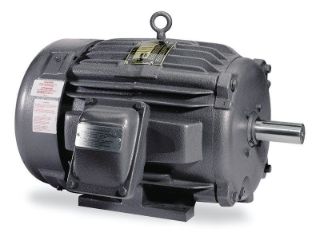

Picture of EM7147T-C BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM7147T-C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Hazardous Location Motor

Features

7.5HP,1770/1470RPM,3PH,60/50HZ,213T

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:XPFC
Frame:213
Frequency Rating:60 Hz; 50 Hz
Full Load Current:16.0 A; 19.0 A; 8.0 A; 9.5 A
Horsepower:5.000 hp; 7.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:A
NEMA Nominal Efficincy:91.70%
Phase:Three Phase
Power Factor:81
Rotation:Reversible
Service Factor:1
Speed Rating:1,770 rpm; 1,470 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 380 V; 230 V; 190 V

Resources

Spec SheetWarranty

Products Specifications

Application
Explosion Proof
Brand Name
Baldor-Reliance
Enclosure
XPFC
Frame
213T
Frequency Rating
50/60 Hz
Horsepower
7 1/2 HP
Speed Rating
1800 RPM
Type
Explosion Proof Motor
Voltage Rating
230/460//190/380
