EM7540T-I BLD

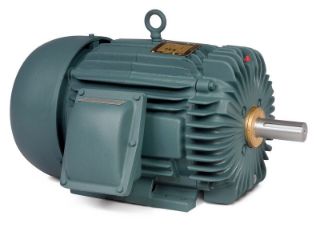

Picture of EM7540T-I BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM7540T-I
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Hazardous Location Motor

Features

5HP,1165RPM,3PH,60HZ,L215T,TEFC,FOOT,

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:L215
Frequency Rating:60 Hz
Full Load Current:13.6 A; 6.8 A
Horsepower:5.000 hp
Insulation Class:F
NEMA Design:B
NEMA Nominal Efficincy:89.50%
Phase:Three Phase
Power Factor:77
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,165 rpm
Sub Brand:Super-E
Voltage Rating:230 V; 460 V

Resources

Warranty

Products Specifications

Application
Explosion Proof
Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
L215T
Frequency Rating
60 Hz
Horsepower
5 HP
Speed Rating
1200 RPM
Type
Explosion Proof Motor
Voltage Rating
230/460
