EM7556T-I BLD

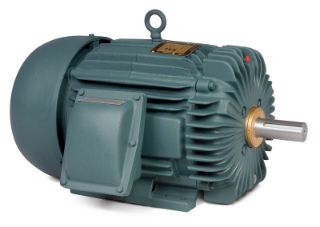

Picture of EM7556T-I BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM7556T-I
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

CA501;Catalog;1/2/2011;CA501;Catalog;9/3/2012;

Application

Hazardous Location Motor

Features

20HP,1765RPM,3PH,60HZ,256T,A25056M,XPFC

Specifications

Base:Rigid
Country of Origin:USA
Duty:Continuous
Enclosure:TEFC
Frame:256
Frequency Rating:60 Hz
Full Load Current:24.0 A; 48.0 A
Horsepower:20.000 hp
Insulation Class:F
NEMA Design:B
NEMA Nominal Efficincy:93.00%
Phase:Three Phase
Power Factor:84
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,765 rpm
Sub Brand:Super-E
Voltage Rating:230 V; 460 V

Resources

Warranty

Products Specifications

Application
Explosion Proof
Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
256T
Frequency Rating
60 Hz
Horsepower
20 HP
Speed Rating
1800 RPM
Type
Explosion Proof Motor
Voltage Rating
230/460
