EMM3615 BLD

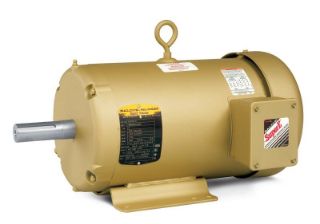

Picture of EMM3615 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EMM3615
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,438.39 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

3.7KW,1750RPM,3PH,60HZ,D112M,3642M,TEFC

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:D112
Frequency Rating:60 Hz
Full Load Current:13.4 A; 13.9 A; 6.7 A
Horsepower:4.000 hp
Insulation Class:F
Mounting:F2
NEMA Design:B
NEMA Nominal Efficincy:89.50%
Phase:Three Phase
Power Factor:78
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,750 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TEFC
Frame
D112M
Frequency Rating
60 Hz
Horsepower
3.7 kW
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
208-230/460 V
