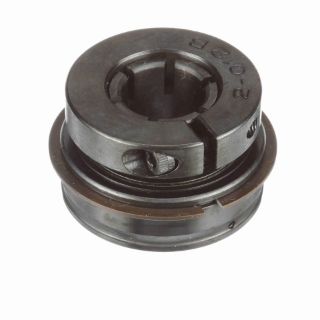

Picture of ER-12T SMT
Actual Product May Vary From Image

ER-12T SMT

Sealmaster® 705572 ER-T Non-Expansion Standard Duty Straight Bore Ball Bearing Insert With Snap Ring, 3/4 in Dia Bore, 1.8504 in OD, 1 Rows, 1-9/32 in W, 2611 lb Dynamic/1444 lb Static Load
Manufacturer: Regal Rexnord
Manufacturer part number: 705572
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
10 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$72.28

Product Details

Brand Name

Sealmaster®

Type

Non-Expansion Standard Duty Straight Bore

Description

Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Ball Bearing Insert, Non-Expansion Standard Duty Straight Bore, Series: ER-T, 3/4 in Bore, 1.8504 in OD, 1 Rows, 1-9/32 in Width, Double Seal Closure, 2611 lb Dynamic/1444 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 10200 rpm Maximum, -20 to 220 deg F, Black Oxide Coated

Application

Aggregate, Cement, Forestry, HVAC, Metals, Minerals, Mining, Packaging Machinery and Unit Handling Industries

Features

  • The Sealmaster® ER bearings outer ring is black oxide and comes standard with a locating ring and lubrication groove and lubrication inlet
  • The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
  • Skwezloc® is a concentric locking collar clamp design that results in near perfect concentricity of the shaft to the bearing bore and maintains near perfect ball path roundness
  • Zone hardened inner race
  • Land riding retainer
  • Lithium complex NLGI #2 grease with an EP additive
  • Relube through outer ring groove

Specifications

Bearing Material:Steel
Bore Diameter:3/4 in
Cage Material:Brass
Closure Type:Double Seal
Country of Origin:MX
Finish:Black Oxide Coated
Load Capacity:2611 lb Dynamic/1444 lb Static
Maximum Speed:10200 rpm
Number of Rows:1
Outside Diameter:1.8504 in
Seal Material:Felt
Series:ER-T
Temperature Rating:-20 to 220 deg F
Width:1-9/32 in
