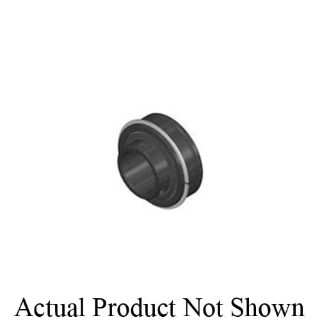

Actual Product May Vary From Image

ER-43 SMT

Name: ER-43 SMT
Brand: Regal Rexnord
SKU: ER-43 SMT
Price: 303.48 USD
Availability: OutOfStock

Sealmaster® 701088 ER Series Non-Expansion Standard Duty Straight Bore Ball Bearing Insert With Snap Ring, 2-11/16 in Dia Bore, 4.9213 in OD, 1 Rows, 2-3/4 in W, 13971 lb Dynamic/10063 lb Static Load

Manufacturer: Regal Rexnord

Manufacturer part number: 701088

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$303.48

Qty:

Product Details

Brand Name

Sealmaster®

Type

Non-Expansion Standard Duty Straight Bore

Description

Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Non-Expansion Standard Duty Straight Bore, Series: ER Series, 2-11/16 in Bore, 4.9213 in OD, 1 Rows, 2-3/4 in Width, Double Seal Closure, 13971 lb Dynamic/10063 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 2500 rpm Maximum, -20 to 220 deg F, Black Oxide Coated

Application

Aggregate, Cement, Forestry, HVAC, Metals, Minerals, Mining, Packaging Machinery and Unit Handling Industries

Features

The Sealmaster® ER bearings outer ring is black oxide and comes standard with a locating ring and lubrication groove and lubrication inlet
The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
Zone hardened inner race
Land riding retainer
Lithium complex NLGI #2 grease with an EP additive
Relube through outer ring groove
Balance three point contact and minimizes inner ring distortion vibration
Reduces noise and improves reliability

Specifications

Bearing Material:	Steel
Bore Diameter:	2-11/16 in
Cage Material:	Brass
Closure Type:	Double Seal
Country of Origin:	US
Finish:	Black Oxide Coated
Load Capacity:	13971 lb Dynamic/10063 lb Static
Maximum Speed:	2500 rpm
Number of Rows:	1
Outside Diameter:	4.9213 in
Seal Material:	Felt
Series:	ER Series
Temperature Rating:	-20 to 220 deg F
Width:	2-3/4 in
