ER19 RBC

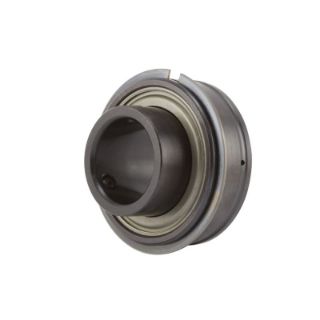

Nice® ER19 ER Series Non-Fill Slot Precision Deep Groove Ball Bearing With Extended Inner Ring, 1-3/16 in Dia Bore, 2.441 in OD, 1 Rows, 1-1/2 in W, 4360 lb Load
Manufacturer part number: ER19
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
5 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$79.80

Product Details

Brand Name

Nice®

Type

Non-Fill Slot

Description

Nice® Precision Deep Groove Ball Bearing, Non-Fill Slot, Series: ER Series, 1-3/16 in Bore, 2.441 in OD, 1 Rows, 1-1/2 in Width, Double Seal Closure, 4360 lb Load, 52100 Steel Bearing, Nylon Cage, 5000 rpm Maximum, 300 deg F, Black Oxide

Application

Textile Machinery, Agricultural Machinery, Pulleys, Idlers and Material Handling Equipment

Standards

ABEC-1 | ASPR | CAS | DFAR | FAR Standards

Features

  • Exclusive heavy duty DL seal
  • Two lubrication holes allow for regreasing
  • Two knurled cup point set screws offer excellent resistance to loosening under vibratory conditions
  • Fully ground, SAE 52100 chrome alloy steel races
  • Black oxide finish provides added corrosion resistance
  • Permanently sealed and prelubricated for long life
  • Pregreased with metered Shell Alvania #2 grease
  • 2535 lb dynamic/4360 lb static

Specifications

Bearing Material:52100 Steel
Bore Diameter:1-3/16 in
Cage Material:Nylon
Closure Type:Double Seal
Country of Origin:US
Finish:Black Oxide
Load Capacity:4360 lb
Maximum Speed:5000 rpm
Number of Rows:1
Outside Diameter:2.441 in
Series:ER Series
Temperature Rating:300 deg F
Width:1-1/2 in
