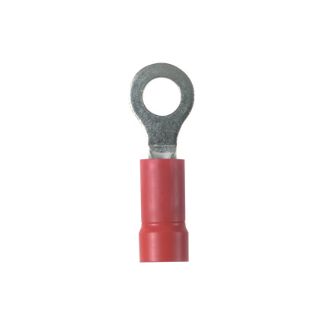

Actual Product May Vary From Image

EV18-10RB-Q PAN

Name: EV18-10RB-Q PAN
Brand: Panduit
SKU: EV18-10RB-Q PAN
Price: 0.26 USD
Availability: InStock

Panduit® EV18-10RB-Q PV Series Insulated Ring Terminal, 22 to 18 AWG Conductor, 0.94 in L, Butted Seam/Funnel Entry Barrel, Red

Manufacturer: Panduit

Manufacturer part number: EV18-10RB-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	100
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.26

Qty:

Product Details

Brand Name

Panduit®

Type

Insulated

Description

Panduit®, EV18-10RB-Q, Ring Terminal, Insulated, Series: PV Series, Solid/Stranded Copper Conductor, 22 to 18 AWG Conductor, #10 Stud, 0.94 in Length, Butted Seam/Funnel Entry Barrel, Ring Tongue, 7.9 mm W x 0.032 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 221 deg F, Tin Plated, Red, 0.94 in L x 0.31 in W Dimensions

Application

General Purpose Applications

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Brazed seam protects terminal barrel from splitting during the crimp process
Barrel of terminal internally beveled to provide quick and easy wire insertion
Without insulation

Specifications

Barrel Type:	Brazed Seam/Butted Seam/Funnel Entry/Internal Serration
Color:	Red
Conductor Size:	18 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	0.94 in L x 0.31 in W
Finish:	Tin Plated
Length:	0.94 in
Material:	Copper
Series:	PV Series
Specifications:	0.31 in Mounting Hole Size, 5/16 in L Wire Strip, Vinyl Insulation
Stud Size:	#10
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.032 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
