F 1 15/16 MSG

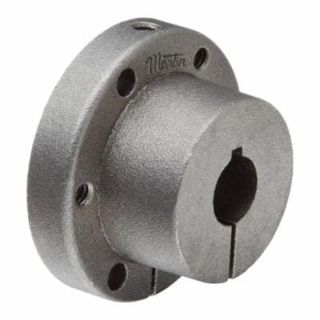

Picture of F 1 15/16 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
F 1 15/16
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$240.88 / EA

Description

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, Standard, 1-15/16 in Bore Dia, 4.437 in Barrel Dia, 7-3/4 in Hub Dia, 5-5/8 in Bolt Circle, 6-5/8 in Flange Dia, 13/16 in Flange Thickness, 3 Bolt Holes, 9/16-12 x 3-5/8 in Screw, 30000 in-lb, 3-5/8 in Overall Length, 1/4 x 1/2 in Keyway, Cast Iron

Features

  • Size F bushing
  • QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
  • These bushings have a flange
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ QD bushings

Specifications

Barrel Diameter:4.437 in
Bolt Circle Diameter:5-5/8 in
Bore Diameter:1-15/16 in
Country of Origin:US
Flange Diameter:6-5/8 in
Flange Thickness:13/16 in
Hub Diameter:7-3/4 in
Keyway Size:1/4 x 1/2 in
Material:Cast Iron
Number of Bolt Holes:3
Overall Length:3-5/8 in
Screw Size:9/16-12 x 3-5/8 in
Torque Rating:30000 in-lb

Products Specifications

Brand Name
Martin Sprocket & Gear
