F 1.5E SLEEVE W/O-RING LOV

Name: F 1.5E SLEEVE W/O-RING LOV
Brand: Lovejoy
SKU: F 1.5E SLEEVE W/O-RING LOV
Price: 320.86 USD
Availability: InStock

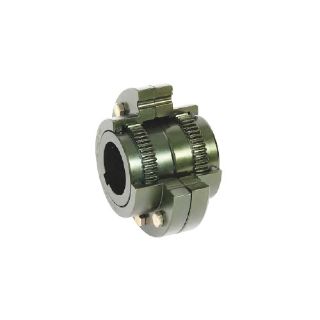

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

69790400158

CBT Inventory

Vendor Inventory

Availability:

6 in stock

Estimated dates are contingent upon manufacturer stock.

$320.86 / EA

Description

Brand Name

Lovejoy®

Type

Type F Exposed Bolt Flanged Flexible

Description

The F Type coupling consists of two flex hubs, two sleeves and one accessory kit. Exposed bolts (E) are the standard design for this coupling, though shrouded bolt (S) designs are available upon request through size 5-1/2. The F Type has a max angular misalignment of 3 deg (1.5 deg per gear mesh).

Lovejoy® Coupling Sleeve, Type F Exposed Bolt Flanged Flexible, 1-1/2 in Coupling, 6 in OD, For Use With: Sier-Bath® Flex-Flex Gear Couplings, 1045 Steel, Metallic

Application

For driver and driven applications

Standards

ECCN EAR99

Features

Patented Vari-Crown® tooth form for long life
Precision cut 20 deg pressure angle gear teeth with minimum backlash
Heat treated bolts for greater strength
Corrosion-resistant bolts and nuts for ease of maintenance
Provides parallel, angular misalignment and end float
Flex Half coupling interchangeable with industry standards
Exposed bolts standard on all sizes, shrouded available by request up to size 6

Specifications

Country of Origin:	US
Coupling Size:	1-1/2 in
Finish:	Metallic
Material:	1045 Steel
Outside Diameter:	6 in
Suitable For Use With:	Sier-Bath® Flex-Flex Gear Couplings
