F4CR RBC

Heim® Bearings produces the industry's widest range of rod end types and sizes. Heim®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two piece designs, self-lubricating rod ends with engineered thermoplastic races or Teflon® liners and military standard rod ends for the ultimate in rod end performance. Heim® also produces a complete line of ball bearing rod ends that have extremely low friction and accommodate misalignment. Heim® rod ends are also available with a variety of plating's, coatings and materials and with a wide range of optional features such as lubrication fittings, left hand threads and keyway slots.

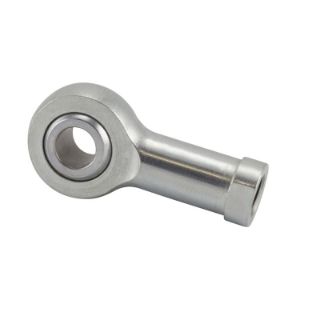

Heim® Spherical Plain Rod End, Female, Series: F CR, 1/4 in Bore Dia, 3/4 in Outside Dia, 3/8 in Width, UNF-3B Thread, 1/4-28 Thread, 1.312 in Center Line Length, 3200 lb, 250 deg F, Carbon Steel, Steel, 1.687 in H
