F92ELBNBNSNM5.5 PAN

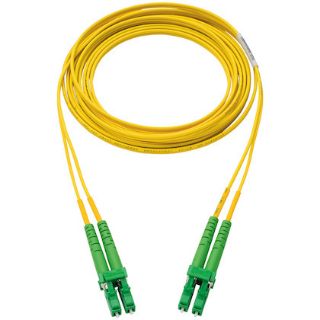

Picture of F92ELBNBNSNM5.5 PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
F92ELBNBNSNM5.5
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

OS2 G.652.D LSZH Fiber Optic

Description

Panduit® Opti-Core® Patch Cord, OS2 G.652.D LSZH Fiber Optic, 2 Fibers, 5.5 m Length, LC/APC Connector, 9 um Core Dimension, 125 um Clad Dimension, 0.3 dB Maximum Connector Insertion/0.65 dB Minimum Connector Return Attenuation Rating, Yellow Jacket, -20 to 70 deg C

Application

For Interconnect and Cross-Connect of Applications in Entrance Facilities, Telecommunications Rooms, Data Centers and Network Applications to Interconnect Pre-terminated Cassettes in Main, Horizontal and Equipment Distribution Areas

Standards

ARRA Compliant | Directive 2002/95/EC | IEC 60332-1-2/60332-3-24/60754-1/60754-2/61034-2 | RoHS Compliant | TIA/EIA 568-C.3 | TIA 604-3 (FOCIS-3)/604-10 (FOCIS-10) | Buy American Act Compliant

Features

  • Performance/construction - standard IL straight thru (A-B)
  • 1.6 mm cable

Specifications

Attenuation Rating:0.3 dB Maximum Connector Insertion/0.65 dB Minimum Connector Return
Clad Dimension:125 um
Connector Type:LC/APC
Core Dimension:9 um
Country of Origin:CR
Fiber Count:2
Jacket Color:Yellow
Length:5.5 m
Temperature Rating:-20 to 70 deg C
