F98RPGNGNANF095 PAN

Name: F98RPGNGNANF095 PAN
Brand: Panduit
SKU: F98RPGNGNANF095 PAN
Availability: OutOfStock

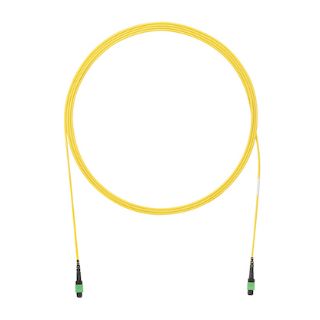

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

F98RPGNGNANF095

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Indoor Round OFNP OS1/OS2 Singlemode Method A Standard IL

Description

8-fiber interconnect assemblies are used in high density, high speed network and storage applications. The 8-fiber MPO female connectors are compatible with QSFP fiber modules that employ parallel optics technologies such at 40GBASE-SR4 and 100GBASE-SR4. 8-fiber interconnects can connect (2) QSFP modules directly or can be used to connect a QSFP port to an MPO to LC cassette.

Panduit®, F98RPGNGNANF095, Interconnect Cable Assembly, 8 Fibers, 95 ft Length, Female MPO Connector, 9 um Core, 125 um Clad, 1 dB/km at 1310/1550 nm Attenuation, Yellow Jacket, 0 to 70 deg C

Application

For 8-fiber interconnects connect to QSFP modules that employ parallel optics technologies such as 40GBASE-SR4 and 100GBASE-SR4

Standards

Features

Color specific keys with positive and negative keying features
Factory terminated and 100% tested for insertion loss and return loss
Certified 10 GbE performance
Test data supplied with each patch cord and pigtail
Universal reference cords

Specifications

Attenuation Rating:	1 dB at 1310/1550 nm
Clad Dimension:	125 um
Connector Type:	Female MPO
Core Dimension:	9 um
Country of Origin:	CR
Fiber Count:	8
Jacket Color:	Yellow
Length:	95 ft
Temperature Rating:	0 to 70 deg C
