F9B3-NM3Y PAN

Name: F9B3-NM3Y PAN
Brand: Panduit
SKU: F9B3-NM3Y PAN
Availability: OutOfStock

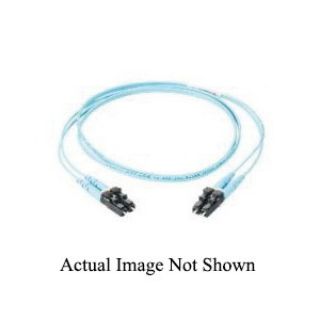

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

F9B3-NM3Y

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

OS1/OS2 Singlemode Riser Simplex Tight Buffered

Description

RoHS compliant fiber optic patch cords shall include simplex or duplex LC, SC, ST or MT-RJ connectors or FJ or keyed FJ plugs or jacks on both ends. RoHS compliant fiber optic pigtails shall include simplex or duplex LC, SC, ST or MT-RJ connectors or FJ or keyed FJ plugs or jacks on one end and open (unterminated) on the other end. Patch cords and pigtails shall include laser optimized OM4, OM3 fiber or OM2, OM1 or OS1/OS2 fiber in 900 um tight-buffered fiber, 1.6 mm or 3.0 mm simplex or duplex zipcord jacketed cable, or 1.8 mm duplex zipcord jacketed cable. Jacketed cable shall be compliant with UL 1666 (OFNR) or NFPA 262 (OFNP) flame ratings. Patch cords and pigtails shall meet or exceed requirements of TIA/EIA-568-C.3. The fiber connectors shall be FOCIS compliant or compatible and exceed the requirements of TIA/EIA-455-21A for 500 mating cycles.

Panduit® Opti-Core® Fiber Optic Patch Cord, OS1/OS2 Singlemode Riser Simplex Tight Buffered, 1 Fiber, 3 m Length, SC to Pigtail Connector, 9 um Core, 125 um Clad, Yellow Jacket, Blue Boot

Application

Interconnect Pre-terminated Cassettes in Main Distribution, Horizontal Distribution, Equipment Distribution Areas, Entrance Facility, Telecommunication Room, Data Center, Ethernet, Fast Ethernet, FDDI and ATM Applications

Standards

Features

Factory terminated and 100% tested for insertion loss (all) and return loss (10Gig™ and SM)
Certified 10 GbE performance
Test data supplied with each patch cord and pigtail
Q.C. identification label
Singlemode end face geometry 100% factory inspected
Singlemode end face UPC polished (55 dB minimum return loss)
Singlemode patch cords include low water peak fiber
Insertion loss and return loss data recorded for every singlemode patch cord
Highest quality flame retardant fiber optic cable with tight-buffered coating on each optical fiber

Specifications

Clad Dimension:	125 um
Color:	Blue Boot
Connector Type:	SC to Pigtail
Core Dimension:	9 um
Fiber Count:	1
Jacket Color:	Yellow
Length:	3 m
