F9F3A-3AM5 PAN

PANDUIT® OPTI-CORE® APC fiber optic patch cords and pigtails support high-speed data applications over installations that include entrance facilities, carrier equipment, telecommunications, patch field and CATV. OPTI-CORE® APC patch cords pass all TIA/EIA-568-B.3 and ISO/IEC 11801 OS1 performance requirements and offer optimum performance compared to standard single mode patch cords. The APC (angled physical Contact) connectors provide a lower insertion loss and a higher return loss than standard UTP (Ultra physical Contact) single mode connectors. The green connectors easily distinguish OPTI-CORE® APC patch cords and pigtails from standard single mode patch cords and pigtails. OPTI-CORE® APC patch cords are available with SC connector combinations. Patch cord fiber options include 1.6 and 3mm jacketed cable and 900 um tight buffered fiber in standard meter lengths.

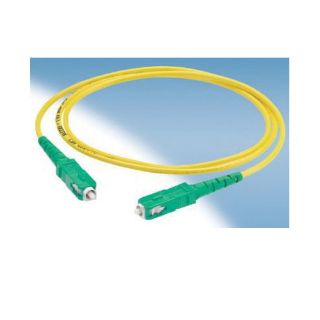

Panduit® Opti-Core® Fiber Optic Patch Cord, Simplex OS1/OS2 Singlemode Riser, 1 Fiber, 16.4 ft Length, SC-APC to SC-APC Connector, 9 um Core, 125 um Clad, Yellow Jacket, Green
