F9N0505RTPM010 PAN

Name: F9N0505RTPM010 PAN
Brand: Panduit
SKU: F9N0505RTPM010 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

F9N0505RTPM010

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

OS2 Plenum Round Standard

Description

RoHS compliant MTP/MPO interconnect round cable assemblies shall include one factory terminated female MTP/MPO 12-fiber connector on each end of laser optimized OM3 and OM4 fiber or OM1, OM2 or OS1/OS2 fiber. Jacketed cable is compliant with NFPA 262 (OFNP) flame rating. MTP/MPO interconnect round cable assemblies shall meet or exceed the requirements of TIA/EIA-568-C.3. The MTP/MPO 12-fiber connector shall exceed the requirements of TIA/EIA-455-21A for 500 mating cycles. The MTP/ MPO connector finishing process shall deliver uniform fiber height, low insertion loss and excellent return loss performance across the 12-fiber interface.

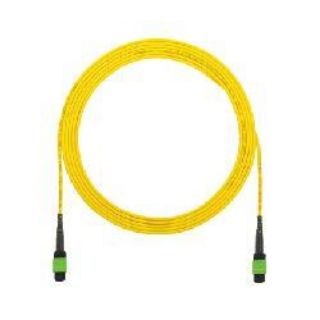

Panduit® QuickNet™ MTP® Interconnect Cable Assembly, OS2 Plenum Round Standard, 12 Fibers, 10 m Length, Female MPO Connector, 9 um Core Dimension, 125 um Clad Dimension, Yellow

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant

Features

High density 12-fiber round cable enables an easy and well organized high density installation with design flexibility and lower installation costs
MTP/MPO connector easily connects network segments to reduce deployment time, improve reliability and make maintenance easier
MTP/MPO mechanical design precision plug yields lower average insertion loss for improved optical performance
Interface design improvements assure durability and reliability
Proprietary polishing process, helps optimize connector to connector mating resulting in low insertion loss and excellent return loss performance

Specifications

Clad Dimension:	125 um
Connector Type:	Female MPO
Core Dimension:	9 um
Country of Origin:	CR
Fiber Count:	12
Jacket Color:	Yellow
Length:	10 m
