F9S3-3M2Y PAN

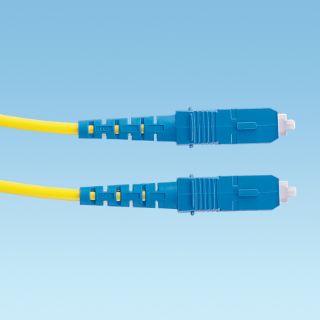

Picture of F9S3-3M2Y PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
F9S3-3M2Y
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

OS1/OS2 Jacketed Simplex

Description

Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel.
Panduit® Opti-Core® Fiber Optic Patch Cord, OS1/OS2 Jacketed Simplex, 1 Fiber, 6.6 ft Length, SC to SC Connector, 9 um Core, 125 um Clad, 0.25 dB Attenuation, Yellow Jacket, -20 to 70 deg C

Application

For providing interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | TIA/EIA-568-C.3 | ISO/IEC 11801 | IEC 61754-7 | TIA/EIA-604 FOCIS-5 Compliant | UL 1666

Features

  • Factory terminated and 100% tested for insertion loss
  • Insertion loss data recorded for every multimode patch cord
  • Lifetime traceability of test data to a Q.C. number on each patch cord
  • Highest quality flame-retardant fiber-optic cable with tight-buffered coating on each optical fiber
  • 3 mm jacket
  • OS1 9/125 um Singlemode fiber
  • Riser (OFNR) flammability rating

Specifications

Attenuation Rating:0.25 dB
Clad Dimension:125 um
Connector Type:SC to SC
Core Dimension:9 um
Fiber Count:1
Jacket Color:Yellow
Length:6.6 ft
Temperature Rating:-20 to 70 deg C
