F9UYLE5E5AAM050 PAN

Name: F9UYLE5E5AAM050 PAN
Brand: Panduit
SKU: F9UYLE5E5AAM050 PAN
Availability: OutOfStock

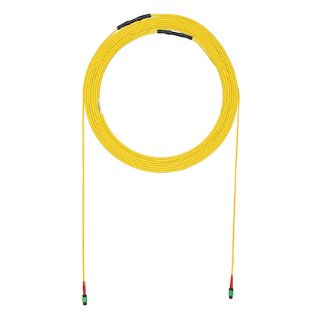

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

F9UYLE5E5AAM050

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Indoor OS1/OS2 Singlemode LSZH Method A Standard IL Small Diameter

Description

QuickNet™ 24 Fiber MPO Pre-Terminated Trunk Cable Assemblies allow for rapid deployment of high-density permanent links for aggregation of Ethernet and higher speed Fiber Channel Cabling. These cables facilitate direct attach or structured cabling capability for 100GBASE-SR10 applications and CXP or MXP optics requiring 24 fiber MPO interconnection at the transceiver media device interface.

Panduit®, F9UYLE5E5AAM050, Fiber Trunk Cable Assembly, 24 Fibers, 50 m Length, Female MPO Connector, 9 um Core, 125 um Clad, 1 dB at 1310/1550 nm Attenuation, Yellow Jacket, 32 to 158 deg F

Application

For use to support direct connection and structured cabling of 100GBASE-SR10 links and aggregation of multiple lower count fiber cables onto a single 24F MPO cable and indoor applications

Standards

Features

These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability

Specifications

Attenuation Rating:	1 dB at 1310/1550 nm
Clad Dimension:	125 um
Color:	Yellow
Connector Type:	Female MPO
Core Dimension:	9 um
Country of Origin:	CR
Fiber Count:	24
Jacket Color:	OS2
Jacket Material:	LSZH
Length:	164 ft
Temperature Rating:	32 to 158 deg F
