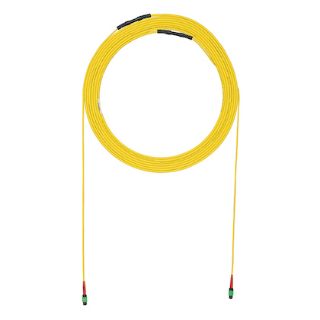

F9UYPE5E5ANF039 PAN

Name: F9UYPE5E5ANF039 PAN
Brand: Panduit
SKU: F9UYPE5E5ANF039 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

F9UYPE5E5ANF039

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Single-Mode Small Diameter

Description

QuickNet™ 24-fiber MPO pre-terminated trunk cable assemblies allow for rapid deployment of high density permanent links for aggregation of Ethernet and higher speed fiber channel cabling. These cables facilitate direct attach or structured cabling capability for 100GBASE-SR10 applications and CXP or MXP optics requiring 24-fiber MPO interconnection at the transceiver media device interface.

Panduit® HD Flex™ Fiber Trunk Cable Assembly, Single-Mode Small Diameter, 24 Fibers, 39 ft Length, Female MPO Connector, 9 um Core, 125 um Clad, 1 dB at 1310/1550 nm Attenuation, Plenum Jacket, OS2 Jacket, Yellow, 32 to 158 deg F

Application

For use to support direct connection and structured cabling of 100GBASE-SR10 links and aggregation of multiple lower count fiber cables onto a single 24F MPO cable and indoor applications

Standards

Features

Color specific keys with positive and negative keying features
Factory terminated and 100% tested for insertion loss and return loss
Certified 10 GbE performance
Test data supplied with each patch cord and pigtail
Universal reference cords

Specifications

Attenuation Rating:	1 dB at 1310/1550 nm
Clad Dimension:	125 um
Color:	Yellow
Connector Type:	Female MPO
Core Dimension:	9 um
Country of Origin:	CR
Fiber Count:	24
Jacket Color:	OS2
Jacket Material:	Plenum
Length:	39 ft
Temperature Rating:	32 to 158 deg F
