Home / FB22439H LBB

FB22439H LBB

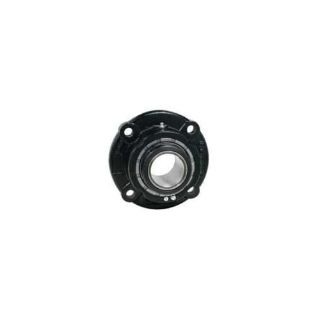

Picture of FB22439H LBB
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
FB22439H
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$712.07 / EA

Description

Brand Name

Link-Belt®

Type

Fixed

Description

Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.
Link-Belt® Flanged Block Spherical Roller Bearing, Fixed, Series: B22400, 2-7/16 in Bore, 4-49/64 in Bolt Center-to-Center Length, 6-3/4 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 7-3/4 in Overall Length/Diameter, 3-19/32 in Overall Depth, 8-1/8 in Overall Height, Single Set Screw Collar Locking Device, 38300 lb Dynamic/53500 lb Static Load, 2300 rpm Maximum, -40 to 400 deg F, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 11

Features

  • Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
  • Double contoured retainer pockets
  • Cast iron housing
  • Factory set clearance and lubrication
  • Extended inner ring, separable outer rings
  • Type H floating labyrinth clearance seals have multiple self-centering rings held securely in a steel carrier

Specifications

Bolt Center-to-Center Length:4-49/64 in
Bolt Circle Diameter:6-3/4 in
Bore Diameter:2-7/16 in
Finish:Powder Coated
Flange Mounting Type:4-Bolt Round
Load Capacity:38300 lb Dynamic/53500 lb Static
Locking Device:Single Set Screw Collar
Maximum Speed:2300 rpm
Overall Depth:3-19/32 in
Overall Height:8-1/8 in
Overall Length/Diameter:7-3/4 in
Series:B22400
Temperature Rating:-40 to 400 deg F
