FC209/16 BOS

At Boston Gear® we manufacture our FC couplings from the highest quality alloy steel, not from powdered metal as many other industrial manufacturers do. Consisting of two metal jaws or hubs and an insert, this style of coupling is suited for high torque and shock loads, does not require lubrication and is not affected by oil, grease, dirt or moisture. The allowable torque for the FC series of couplings is determined by the insert material. These inserts are the wearing member of the coupling and can be easily replaced with minimal effort.

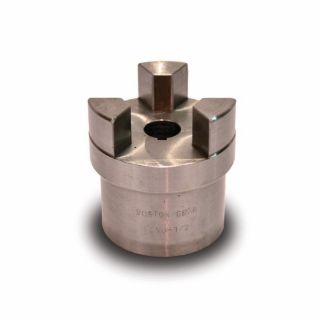

Boston Gear® Jaw Coupling Hub, Series: FC Series, FC20 Coupling, 9/16 in Bore Dia, 1-3/4 in Hub Dia, 1-1/8 in Hub Length, 1/8 x 1/16 in Keyway, 1750 rpm Maximum, 1-4/16 in Length Through Bore, 1/4-20 Screw, Steel
