FLCSSCBUY PAN

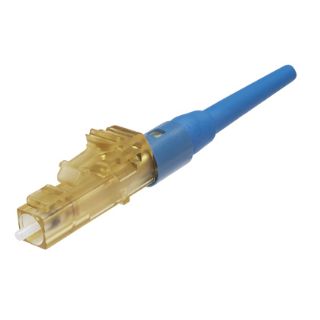

Picture of FLCSSCBUY PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
FLCSSCBUY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$33.84 / EA

Description

Brand Name

Panduit®

Description

LC small form factor (SFF) pre-polished connectors with rear pivot latch shall be TIA/EIA-604 FOCIS-10 compatible and contain a factory terminated fiber, eliminating field polishing and adhesive. LC pre-polished connectors shall have an average insertion loss of 0.3 dB per mated pair for multimode and single mode fiber. LC pre-polished connectors shall captivate fiber and buffer in one action allowing for up to two re-terminations with no degradation in performance.
Panduit®, FLCSSCBUY, Fiber Optic Connector, LC Simplex Connector, 9/125 um OS1/OS2 Single Mode Fiber, 900 um Tight Buffered Fiber Cable, Pre-Polished Zirconia Ferrule, Plastic, Blue

Application

For high speed data transmission in fiber optic backbone and horizontal application, maintenance or emergency restoration of fiber network and retrofit/initial install in both behind the wall (BTW) and in the permanent side of panelized interconnect and cross connect

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | TIA/EIA 568-B.3/C.3/604 FOCIS-10

Features

  • Factory pre-polished fiber end face eliminates time consuming field polishing to reduce installations costs, labor, scrap and the number of tools required
  • Low profile latch resists cable snagging
  • Wide positive grip thumb latch
  • Audible click upon successful mating
  • Field installable duplex clip with integrated polarity markers
  • One connector body design for both simplex and duplex applications
  • Protective cap locks onto connector latch with audible click
  • Anaerobic adhesive field installations
  • Rugged body construction
  • Independent free floating ferrules
  • Rear pivot latch design, robust construction

Specifications

Cable Construction:900 um Tight Buffered Fiber
Color:Blue
Connector Type:LC Simplex
Country of Origin:CR
Ferrule Type:Pre-Polished Zirconia
Fiber Type:9/125 um OS1/OS2 Single Mode
Material:Plastic
Mounting Type:Cam Termination
