FLCSSCGVL PAN

Name: FLCSSCGVL PAN
Brand: Panduit
SKU: FLCSSCGVL PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

FLCSSCGVL

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Keyed G Pre-Polished

Description

Keyed LC small form factor (SFF) pre-polished connectors shall exceed TIA/EIA-568-B.3 performance requirements and contain a factory terminated fiber, eliminating field polishing and adhesive. Keyed LC pre-polished connectors shall be mechanically keyed with color specific positive and negative keying features to prevent unintentional mating with unlike keyed or non-keyed adapters. Keyed LC pre-polished connectors shall have an average insertion loss 0.3 dB per mated pair for multimode and singlemode fiber. Keyed LC pre-polished connectors shall captivate fiber and buffer in one action allowing for up to two re-terminations with no degradation in performance.

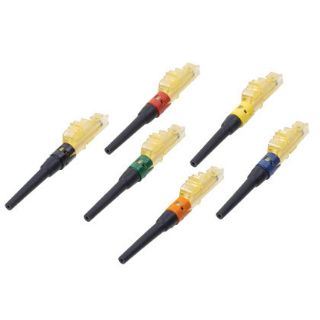

Panduit®, FLCSSCGVL, Fiber Optic Connector, Keyed G Pre-Polished, LC Simplex Connector, 9/125 um OS1/OS2 Single Mode Fiber, 900 um Tight Buffered Cable, Zirconia Ceramic Ferrule, Plastic, Violet

Application

For Keyed LC OptiCam® connectors include maintenance or emergency restoration of secure fiber networks and retrofit/initial install of behind the wall (BTW) connections and the permanent side of interconnect and cross-connect patch fie

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | TIA/EIA 568-B.3

Features

Color specific keys with positive and negative keying features
Factory pre-polished fiber stub endface
Dual cam design with fiber and buffer clamps
Translucent housing assembly (laser marked)
Non-optical disconnect design
Universal termination tool with integrated visual termination indicator (VTI)
0.3 dB average insertion loss
>20 dB return loss

Specifications

Cable Construction:	900 um Buffered Fiber
Color:	Violet
Connector Type:	Keyed LC
Country of Origin:	CR
Ferrule Type:	Zirconia Ceramic
Fiber Type:	9/125 um OS1/OS2 Single Mode
Material:	Ceramic/Plastic
