FLCT1 TKN

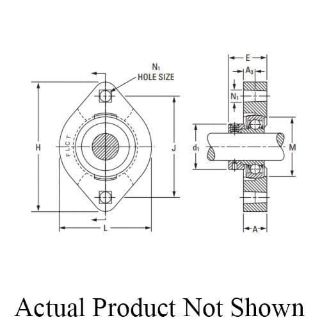

Picture of FLCT1 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
FLCT1
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$171.27 / EA

Description

Brand Name

Fafnir®

Type

Normal Duty Standard

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, FLCT1, Flange Mount Ball Bearing Unit, Normal Duty Standard, Series: FLCT, 1.001 in Bore, 3 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-23/64 in Overall Depth, 1.329 in Overall Height, Eccentric Locking Device, Steel Bearing, 3150 lb Dynamic/1760 lb Static Load, 5440 rpm Maximum, -30 to 275 deg F, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

  • These versatile power-transmission units are designed to provide sturdy shaft support in minimum space at minimum cost
  • The space-saving, two bolt unit mounts flush against the frame
  • The bolt-hole spacing and size is the same as the pressed-steel flangette unit
  • The series is equipped with RA-RRB extended inner-ring ball bearings with positive-contact, land-riding seals
  • The series is permanently pre-lubricated

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:3 in
Bore Diameter:1.001 in
Finish:Uncoated
Flange Mounting Type:2-Bolt
Load Capacity:3150 lb Dynamic/1760 lb Static
Locking Device:Eccentric
Maximum Speed:5440 rpm
Overall Depth:1-23/64 in
Overall Height:1.329 in
Overall Length/Diameter:3-3/4 in
Series:FLCT
Temperature Rating:-30 to 275 deg F

Products Specifications

Brand Name
Timken
Flange Type
2 Bolt Flange
Measuring Units
Inch
Shaft Diameter
1 in
