FLK-100-CLKT FLU

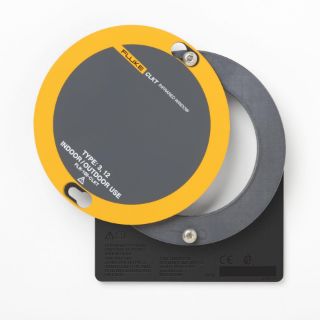

Picture of FLK-100-CLKT FLU
Actual Product May Vary From Image

Product Details

Manufacturer:
Fluke
Manufacturer part number:
FLK-100-CLKT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$689.99 / EA

Description

Brand Name

Fluke®

Type

C-Range

Alternate Supplier #

Grainger - 4LHD2

Description

Once you've installed a Fluke® infrared window there is no more need to power down or remove panel doors you may never have to open the panel door again. Inspections are now conducted quickly, easily and safer than they were before. Your greatest investment is not what's behind the panel door; your priority is to offer the ultimate protection for the electricians, engineers and inspectors who risk their lives every day doing their jobs.
Fluke® ClirVu® Infrared Window, C-Range, Series: CLKT, 1.97 in Crystal Insert, 2 mm Window Thickness, 89 mm Dia Viewing Aperture Size, 6322 sq-mm Viewing Aperture Area, Coated

Application

Indoor and Outdoor Applications

Standards

LSF Compliant | UL 50 | UL Listed | CSA Certified | ANSI C37.20.7 | EEMACS 14-1 | IEC 62271 | IEC60068-2-6 | IEC60068-2-3

Features

  • Each CLKT infrared window is engineered and tested to withstand electric arcs up to 50 kA for 30 cycles
  • The ClirVu® coating exclusive to Fluke® infrared windows - seals the optic prior to assembly to protect against moisture degradation making it perfect for very hot and very cold outdoor environments
  • Each Fluke® infrared window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs
  • CLKT infrared windows come complete with a security access key, installation instructions and self adhesive drilling template
  • Shortwave, midwave, longwave IR, ultraviolet (UV), visual, fusion capable
  • Kwik twist aluminum cover
  • Up to 11 kV marine switchgear
  • Resistance of insulating materials to 100 deg
  • Resistance of insulating material to ball pressure (Brinell)
  • Glow wire test 650 deg C
  • Cyclic humidity and vibration withstand

Includes

Silicone Gasket

Specifications

Crystal Insert Size:1.97 in
Finish:Coated
Series:CLKT
Viewing Aperture Area:6322 sq-mm
Viewing Aperture Size:89 mm Dia
Window Thickness:2 mm
