FLNR002 LIT

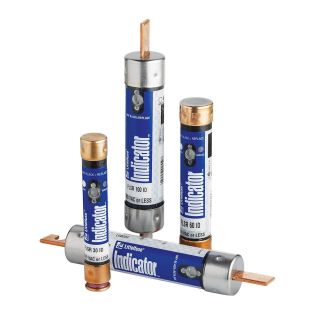

Picture of FLNR002 LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
FLNR002
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$15.02 / EA

Description

Brand Name

Littelfuse®

Type

Current Limiting

Alternate Supplier #

Grainger - 486K74

Description

Littelfuse® FLNR series fuses have been the superior UL Class RK5 dual element time delay fuses and are the most widely used Class of fuses. FLNR series fuses provide excellent protection for all types of circuits especially those containing motors. However, users and specifiers should consider the significant benefits offered by indicator fuses.
Littelfuse® POWR-GARD® Time Delay Fuse, Current Limiting, Series: FLNR, Non-Indicating, Rejection, 2 A, 250 VAC/125 VDC, 200/20 kA Interrupt, Class: RK5, 50/60 Hz, 10 s Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiber, 9/16 in Dia x 2 in L Body Size

Application

Service Entrance Switches, Transformers, Switchboard Mains and Feeders, Motor Control Central Mains, Motor Branch Circuits and All General Purpose Circuits Applications

Standards

UL 248-12 | E81895 | CSA LR29862 | Federal Specification WF-1814 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Reliable interruption of all over currents up to 200 kA
  • Faster acting short circuit protection than any non-current limiting mechanical protective device
  • Accurate and reliable - automated, precision manufactured and assembled parts ensure accurate, consistent response to overloads and short circuits
  • 300 kA rms symmetrical self certified
  • Bronze caps
  • Industrial cylindrical cartridge fuses

Specifications

Amperage Rating:2 A
Body Size:9/16 in Dia x 2 in L
Body Type:Cylindrical
Class:RK5
Country of Origin:MX
Element:Dual
Frequency Rating:50/60 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200/20 kA
Material:Fiber
Mounting Type:Holder
Rejection/Non-Rejection:Rejection
Response Time:10 s
Series:FLNR
Terminal Type:Ferrule
Voltage Rating:250 VAC/125 VDC

Products Specifications

Amperage Rating
2.0 A
Brand Name
Littelfuse
Type
Time-Delay Fuse
Voltage Rating
250 VAC/125 VDC
