FLNR100 LIT

Name: FLNR100 LIT
Brand: Littelfuse
SKU: FLNR100 LIT
Price: 46.24 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

FLNR100V

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$46.24 / EA

Description

Brand Name

Littelfuse®

Type

Current Limiting

Description

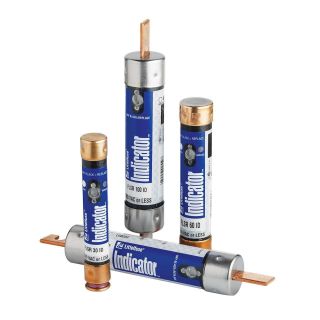

The FLNR/FLSR series of fuses set the standard for general purpose fuses. The dual-element design provides advanced short circuit and overload protection. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors.

Littelfuse® Time Delay Fuse, Series: FLNR, Indicating/Non-Indicating: Indicating, 100 A, 250 VAC, 300/20 kA Interrupt, Class: RK5, Clip Mount, Dual Element, Polyester, 5-7/8 in Dia x 1-1/16 in L Body Size

Application

Branch circuits, Branch circuits, Feeders, General purpose equipment, Motor circuits, Mains, Service entrance equipment and Transformers

Standards

CSA LR29862/C22.2 | Standard 248-12 | RoHS Compliant | UL E81895 | WF-1814

Features

Reliable interruption of all over currents up to 200 kA
Faster acting short circuit protection than any non-current limiting mechanical protective device
Accurate and reliable - automated, precision manufactured and assembled parts ensure accurate, consistent response to overloads and short circuits
300 kA rms symmetrical self certified
Copper caps

Specifications

Amperage Rating:	100 A
Body Size:	1-1/16 in Dia x 5-7/8 in L
Body Type:	Cylindrical
Class:	RK5
Country of Origin:	MX
Element:	Dual
Frequency Rating:	50/60 Hz
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200/20 kA
Material:	Composite
Mounting Type:	Clip
Rejection/Non-Rejection:	Rejection
Response Time:	10 s
Series:	FLNR
Terminal Type:	Knife Blade
Voltage Rating:	250 VAC
