FLUKE-113 FLU

Product Details

Manufacturer:
Manufacturer part number:
FLUKE-113
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Fluke®

Type

Utility

Alternate Supplier #

Grainger - 2VGA1
Fastenal - 0727482

Description

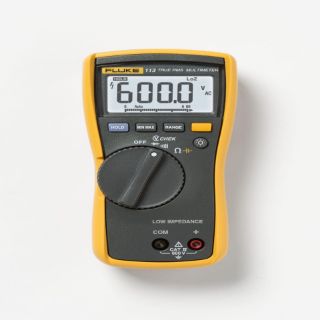

Fluke® 113 digital multi-meter gives users the means to quickly and easily do basic meter set and reconnect testing. This meter is simple to use and has the features needed to repair most electrical problems. The Fluke® 113 has significant improvements over other digital multimeters available on the market, including Fluke® model 7-600. Using the Fluke® VCHEK™ LoZ low impedance measurement function, users can simultaneously test for voltage or continuity. The min max function lets you record signal fluctuations. The Fluke® 113 can perform diode tests and also provides both auto and manual ranging capabilities. With features such as conformance to the latest safety standards, backlight and a much larger display that's easier to view, this meter is a must have for every toolbox.
Fluke® VCHEK™ Digital Multimeter, Utility, 600 VDC/VAC, 60 kOhm Measuring, 6/60/600 VAC/VDC, 600 Ohm/6/60 kOhm Resistance, Safety Rating: CAT III 600 VAC/VDC, CAT IV 300 VAC/VDC Pollution deg 2, 1000 nF, 10/100/9999 uF Capacitance, 2% + 3 (45 to 500 Hz), 4% +3 (500 Hz to 1 kHz) VAC Accuracy, Backlight/Digital Display, 9 VDC Alkaline/ANSI 1604A/IEC 6F22 Battery, No Peak Hold, Yes Diode Test, 1.81 in L x 3.35 in W x 6.58 in H Dimensions, 14 to 122 deg F, Hard Plastic

Application

For basic electrical tests

Standards

CE Marked | cCSAus Certified | UL Listed | ANSI/ISA 82.02.01 (61010-1) 2004 | CAN/CSA C22.2 File No. 61010-1-04 | UL File No. 61010-1 (2004) | IEC/EN 61010-1 2nd Edition | EMC EN 61326-1 | ECCN: EAR99 | PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation

Features

  • VCHEK™ LoZ low impedance measurement function to simultaneously test for voltage or continuity
  • True-RMS for accurate AC measurements on non-linear loads
  • Large backlit display allows for easy visibility in low lit areas
  • Record signal fluctuations using the minimum maximum function
  • Diode test for testing general purpose germanium, silicon and power diodes
  • Integral holster with probe holders for easy storage
  • Auto and manual ranging for added user functionality
  • Meets measurement category CAT III 600 VAC and category IV 300 VAC standards for a higher level of safety
  • 2% 3 (45 to 500 Hz), 4% 3 (500 Hz to 1 kHz) accuracy
  • Resistance range - 600 Ohm with accuracy of +/-(0.9% 2), 6 kOhm, 60 kOhm with accuracy of +/-(0.9% 1)
  • Capacitance range 1000 nF, 10 uF, 100 uF, 100 uF to 1000 uF with accuracy of +/-(1.9% 2), greater than 1000 uF with accuracy of +/-(5% 20)
  • 300 hr typical alkaline, without backlight
  • 3-3/4 digits 6000 count display

Includes

Fluke® 113 Utility Multi-meter TL75 Test Leads, (1) 9 VDC Battery and Printed Users Manual

Specifications

Accuracy:2% + 3 (45 to 500 Hz), 4% +3 (500 Hz to 1 kHz) VAC
Battery Type:9 VDC Alkaline/ANSI 1604A/IEC 6F22
Capacitance:1000 nF, 10/100/9999 uF
Dimensions:1.81 in L x 3.35 in W x 6.58 in H
Diode Test:Yes
Display Type:Backlight/Digital
Material:Hard Plastic
Measuring Range:600 VDC/VAC, 60 kOhm
Peak Hold:No
Resistance:600 Ohm/6/60 kOhm
Safety Rating:CAT III 600 VAC/VDC, CAT IV 300 VAC/VDC Pollution deg 2
Temperature Rating:14 to 122 deg F
Voltage Rating:6/60/600 VAC/VDC
