FLUKE-115 FLU

Product Details

Manufacturer:
Manufacturer part number:
FLUKE-115
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Fluke®

Alternate Supplier #

Grainger - 1GAH9
Fastenal - 0701767

Description

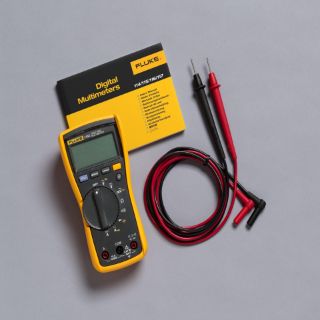

Fluke® 115 True-RMS digital multi-meter provides the perfect answer. Its simple operation, compact design and ease of use makes it perfect for quick verifications and field service use. The Fluke® 115 displays True-RMS voltage and current readings with 6000 count resolution, tests diodes, frequency, continuity and capacitance and provides min max average readings to record signal fluctuations. A large white LED backlight aids work in poorly lit areas. Its easy open Battery access door makes Battery changes a snap. Fluke® 115 multimeters are independently tested for safe use in CAT III 600 V environments. And check out other members of the Fluke® 110 family, the Fluke® 113 utility multi-meter, the Fluke® 114 electrical multi-meter, the Fluke® 116 HVAC multi-meter and the Fluke® 117 commercial electrician's multi-meter. Also check out the Fluke® 114 electrical multi-meter, the Fluke® 116 HVAC multi-meter with temperature and microamps and the Fluke® 117, the electrician's multi-meter with non-contact voltage.
Fluke® Digital Multimeter, 600 VDC/VAC, 10 A, 40 MOhm Measuring, 600 VAC/VDC, 10 A, 5 Hz to 50 kHz Frequency, 0.1 Ohm to 40 MOhm Resistance, Safety Rating: CAT III 600 VAC/VDC, 1000 uF Capacitance, 0.5% + 2 VAC Accuracy, Digital Display, 9 VDC Alkaline/NEDA 1604A/IEC 6LR61 Battery, No Peak Hold, Yes Diode Test, 1.81 in L x 3.35 in W x 6.58 in H Dimensions, 14 to 122 deg F, Hard Plastic

Application

For field service technicians

Standards

RoHS Compliant | CE Marked | CSA Certified | UL Listed | ECCN: 3A992 | PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation

Features

  • Large white LED backlight to work in poorly lit areas
  • Resistance and continuity
  • 10 A AC/DC current measurement (20 A overload for 30 s max)
  • Minimum maximum/average to record signal fluctuations
  • 2 deg pollution
  • 0.5% 2 VDC accuracy
  • Resistance range - 600 Ohm with accuracy of +/-(0.9% 2), 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm with accuracy of +/-(0.9% 1), 40 MOhm with accuracy of +/-(1.5% 2)
  • Capacitance range 1000 nF, 10 uF, 100 uF, 100 uF to 1000 uF with accuracy of +/-(1.9% 2), greater than 1000 uF with accuracy of +/-(5% 20)
  • Frequency range 99.99 Hz, 999.9 Hz, 9.999 kHz, 50 kHz with accuracy of +/-(0.1% 2)
  • 400 hr typical alkaline, without backlight
  • Digital 6000 count, update 4/s display

Specifications

Accuracy:0.5% + 2 VAC
Amperage Rating:10 A
Battery Type:9 VDC Alkaline/NEDA 1604A/IEC 6LR61
Capacitance:1000 uF
Dimensions:1.81 in L x 3.35 in W x 6.58 in H
Diode Test:Yes
Display Type:Digital
Frequency Rating:5 Hz to 50 kHz
Material:Hard Plastic
Measuring Range:600 VDC/VAC, 10 A, 40 MOhm
Peak Hold:No
Resistance:0.1 Ohm to 40 MOhm
Safety Rating:CAT III 600 VAC/VDC
Temperature Rating:14 to 122 deg F
Voltage Rating:600 VAC/VDC
