FLUKE-27II FLU

Product Details

Manufacturer:
Manufacturer part number:
FLUKE-27II
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Fluke®

Alternate Supplier #

Grainger - 4GUE2
Fastenal - 0745569

Description

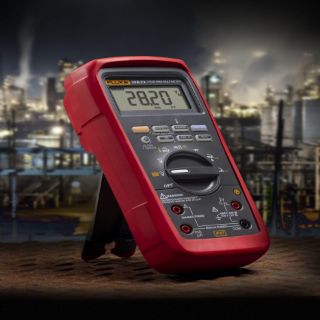

Fluke® 27 II and 28 II digital multi-meters define a new standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems. Both meters have IP67 (waterproof and dustproof) rating, MSHA approvals, extended operating temperature range of -15 to 55 deg C (5 to 131 deg F, -40 deg C for up to 20 min) and 95% humidity and have been designed and tested to withstand a 3 m (10 ft) drop. The Fluke® 20 series multi-meters are built to work in the toughest environments.
Fluke® Digital Multimeter, 1000 VDC/VAC, 10 A, 50 MOhm Measuring, 1000 VAC/VDC, 10 A, 0.5 Hz to 199.99 kHz Frequency, 0.1 Ohm to 50 MOhm Resistance, Safety Rating: CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC, 1 nF to 9999 uF Capacitance, 0.5% + 3 VAC Accuracy, 40 to 30 kHz Bandwidth, Bar Graph/Backlight Display, (3) AA 1.5 VDC Battery, Peak Hold: No, Yes Diode Test, 7.83 in L x 3.94 in W x 2.52 in H Dimensions, -15 to 55 deg C, Hard Plastic

Application

For troubleshoot electrical problems in harsh conditions

Standards

CE Marking | CSA Certified | ECCN: 3A992 | MSHA Approved | RoHS Compliant

Features

  • Minimum maximum and average recording to capture variations automatically
  • Dust and waterproof
  • Extended AC voltage bandwidth from 40 Hz to 30 kHz
  • Resistance, continuity and diode test
  • 0.5% 3 DC accuracy
  • Limited lifetime warranty
  • Resistance range - 0.1 Ohm to 50 MOhm
  • Capacitance range 1 nF to 9999 uF
  • Frequency range 0.5 Hz to 199.99 kHz
  • 800 hours of battery life with bar graph/backlight, min max average and reading hold data storage, IP 67 rating
  • 6000 count, update 4/s, 33 segments, update 40/s display

Specifications

Accuracy:0.5% + 3 VAC
Amperage Rating:10 A
Bandwidth:40 to 30 kHz
Battery Type:(3) AA 1.5 VDC
Capacitance:1 nF to 9999 uF
Dimensions:7.83 in L x 3.94 in W x 2.52 in H
Diode Test:Yes
Display Type:Bar Graph/Backlight
Frequency Rating:0.5 Hz to 199.99 kHz
Material:Hard Plastic
Measuring Range:1000 VDC/VAC, 10 A, 50 MOhm
Peak Hold:No
Resistance:0.1 Ohm to 50 MOhm
Safety Rating:CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC
Temperature Rating:-15 to 55 deg C
Voltage Rating:1000 VAC/VDC
