FLUKE-287 FLU

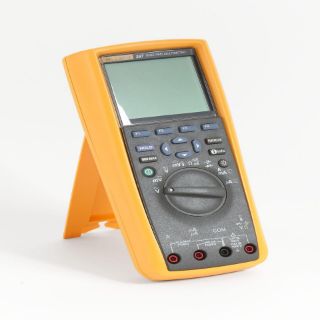

Picture of FLUKE-287 FLU
Actual Product May Vary From Image

Product Details

Manufacturer:
Fluke
Manufacturer part number:
FLUKE-287
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$839.99 / EA

Description

Brand Name

Fluke®

Alternate Supplier #

Grainger - 1EVC6
Fastenal - 0726775

Description

Our best multi-meter. Now with zoom capabilities. As promised, we continue to add capabilities to the 289 multi-meter. Version 1.1 upgrade includes a variety of new features including a zooming ability to view and analyze TrendCapture data at five (5) times magnification. The Fluke® 287 True-RMS electronics logging multi-meter with TrendCapture quickly documents design performance and graphically displays what happened. Its unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke® 287 packs more accuracy and convenience into a handheld multi-meter than ever before, putting more problem solving power in your hands. It is the ultimate handheld tool for demanding applications that require high precision.
Fluke® Digital Multimeter, 1000 VDC/VAC, 10 A, 500 MOhm Measuring, 1000 VAC/VDC, 500/5000 uA, 50/400 mA, 50/10 A, 999.99 kHz Frequency, 500 Ohm to 50 MOhm Resistance, Safety Rating: CAT IV 600 VAC/VDC/CAT III 1000 VAC/VDC, 1 nF to 100 uF Capacitance, 0.025% VDC, 0.4% (True RMS) VAC Accuracy, VGA Display, (6) AA Alkaline, NEDA 15 A/IEC LR6 V Battery, Yes Peak Hold, Yes Diode Test, 2.38 in L x 4.03 in W x 8.75 in H Dimensions, -328 to 2462 deg F, Hard Plastic

Application

For used to quickly document design performance and graphically displays what happened

Standards

CE Marked | CSA Certified | UL Listed | TUV Approved | RoHS Compliant | ECCN: 3A992 | PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation

Features

  • TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred
  • Zoom on trend provides unprecedented ability to view and analyze TrendCapture data, zoom in up to 14X
  • Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy
  • Adjustable recording and auto-hold thresholds, specify a percentage change in the readings that begins a new event
  • Large 50000 count, 1/4 VGA display with white backlight, multiple sets of measurement information can be simultaneously displayed at the same time
  • Logging function with expanded memory for unattended monitoring of signals over time, using on board TrendCapture users can graphically review logged readings without needing a PC
  • Stores up to 15000 recorded events, on board help screens for measurement function
  • Real time clock for automatic time stamping of saved readings
  • True-RMS AC voltage and current for accurate measurements on complex signals or non-linear loads, AC bandwidth specified to 100 kHz
  • Relative mode to remove test lead resistance from low Ohm or capacitance measurements, peak capture to record transients as fast as 250 us, voltage DC, 0.025%, voltage AC, 0.4% (True-RMS) accuracy
  • Resistance range - 500 Ohm, 5 kOhm, 50 kOhm, 500 kOhm, 5 MOhm, 50 MOhm, 500 MOhm with accuracy of +/-0.05%
  • Capacitance range 1 nF, 10 nF, 100 nF, 1 uF, 10 uF, 100uF, 1000 uF, 10 mF, 100 mF with accuracy of 1%
  • Frequency range 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz with accuracy of +/-0.005%
  • 100 hr min, 200 hr in logging mode
  • 50000 count, 1/4 VGA display with white backlight display

Includes

Premium Test Leads, Alligator Clips and Amp Jack Plugs

Specifications

Accuracy:0.025% VDC, 0.4% (True RMS) VAC
Amperage Rating:500/5000 uA, 50/400 mA, 50/10 A
Battery Type:(6) AA Alkaline, NEDA 15 A/IEC LR6 V
Capacitance:1 nF to 100 uF
Dimensions:2.38 in L x 4.03 in W x 8.75 in H
Diode Test:Yes
Display Type:VGA
Frequency Rating:999.99 kHz
Material:Hard Plastic
Measuring Range:1000 VDC/VAC, 10 A, 500 MOhm
Peak Hold:Yes
Resistance:500 Ohm to 50 MOhm
Safety Rating:CAT IV 600 VAC/VDC/CAT III 1000 VAC/VDC
Temperature Rating:-328 to 2462 deg F
Voltage Rating:1000 VAC/VDC
