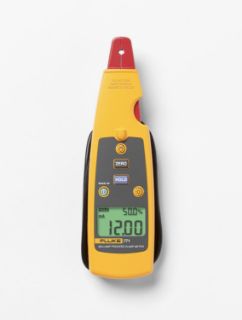

Picture of FLUKE-771 FLU
Actual Product May Vary From Image

FLUKE-771 FLU

Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Manufacturer: Fluke
Manufacturer part number: FLUKE-771
Availability: Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 1
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$975.99

Product Details

Brand Name

Fluke®

Type

Milliamp Process

Alternate Supplier #

Grainger - 1LWZ7

Description

If you need more time in your busy day take a good look at the Fluke® 771 mA clamp meters. It's designed to save you time/and money/by eliminating time wasting activities. Now you can troubleshoot and repair 4 to 20 mA loops without breaking the loop or bringing down the system.
Fluke® Clamp Meter, Milliamp Process, 0 to 100 mA Electrical Rating, Dual Backlit Display, 0.2% + 2 Counts at 0 to 20.99 mA, 1% + 5 Counts at 21 to 100 mA AC Current Accuracy, Safety Rating: IP40, (2) 1.5 VDC AA Alkaline Batteries Power Source, -10 to 50 deg C Operating, 9.29 in L x 4.33 in W x 2.83 in H Dimensions, Hard Plastic

Application

For troubleshoot and repair 4 to 20 mA loops without breaking the loop or bringing down the system

Standards

ECCN: EAR99 | EMI/RFI/EN61326-1

Features

  • Best in class 0.2% accuracy
  • 0.01 mA resolution and sensitivity
  • Measure 4 to 20 mA signals without "breaking the loop"
  • Measure mA signals for PLC and control system analog I/O
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measurement spotlight illuminates hard to see wires in dark enclosures
  • Detachable clamp with extension cable for measurements in tight locations
  • Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically change the 4 to 20 mA output for remote testing
  • Power saving features, auto-Off, backlight timeout extend battery life
  • Hold function captures and displays changing measurements
  • Milliamp process clamp meters can measure mA signals without breaking the loop
  • The popular Fluke® 771 mA clamp meter saves time by making fast/accurate measurements on 4 to 20 mA signal loops without breaking the circuit
  • 0.177 in or 4.5 mm max Dia of measurable conductor, < 90% at <30 deg C, < 75% at 30 to 55 deg C operating humidity, 0 to 2000 m operating altitude, random 2 g, 5 to 500 Hz vibration, 1 meter drop test shock, 0.01% deg C temperature coefficient
  • 0.2% 2 counts for 0 to 20.99 mA/ 1% 5 counts for 21 mA to 100 mA AC current accuracy

Includes

Soft Carrying Case and User Manual

Specifications

AC Current Accuracy:0.2% + 2 Counts at 0 to 20.99 mA, 1% + 5 Counts at 21 to 100 mA
Dimensions:9.29 in L x 4.33 in W x 2.83 in H
Display Type:Dual Backlit
Electrical Ratings:0 to 100 mA
Material:Hard Plastic
Operating Temperature:-10 to 50 deg C
Power Source:(2) 1.5 VDC AA Alkaline Batteries
Safety Rating:IP40
